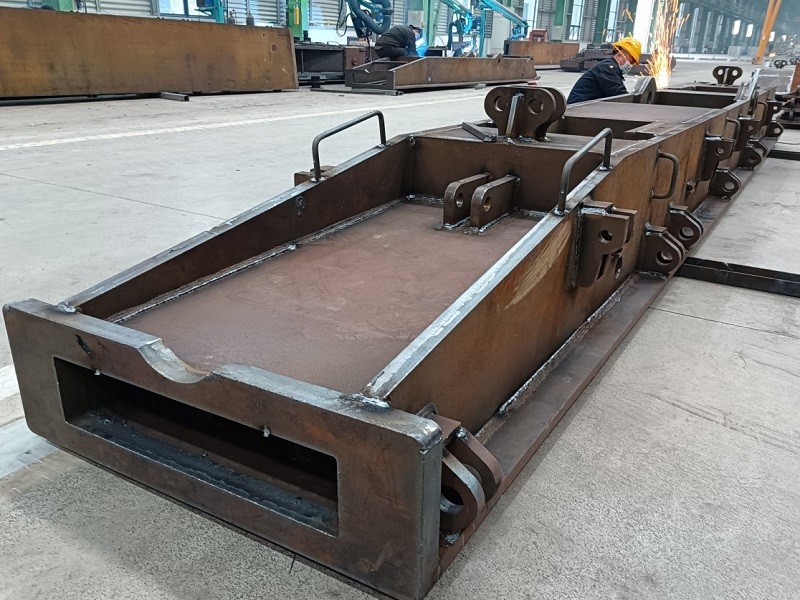

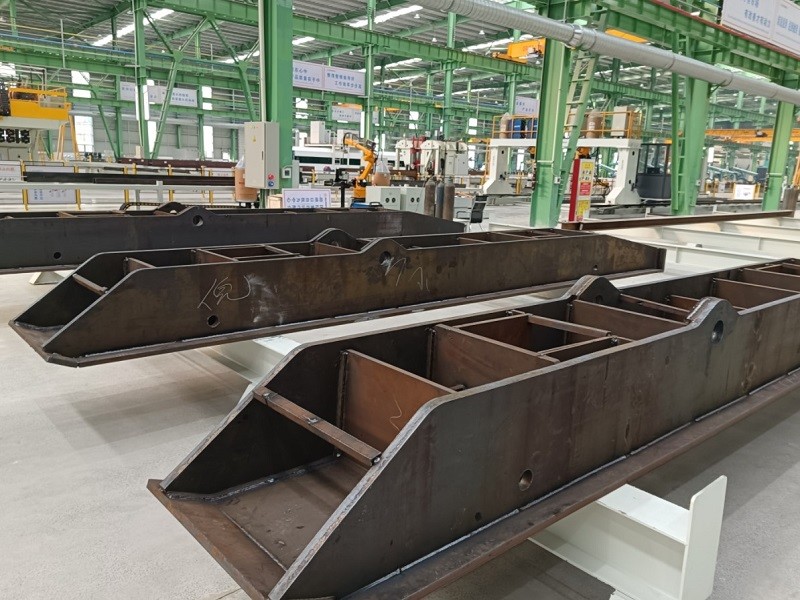

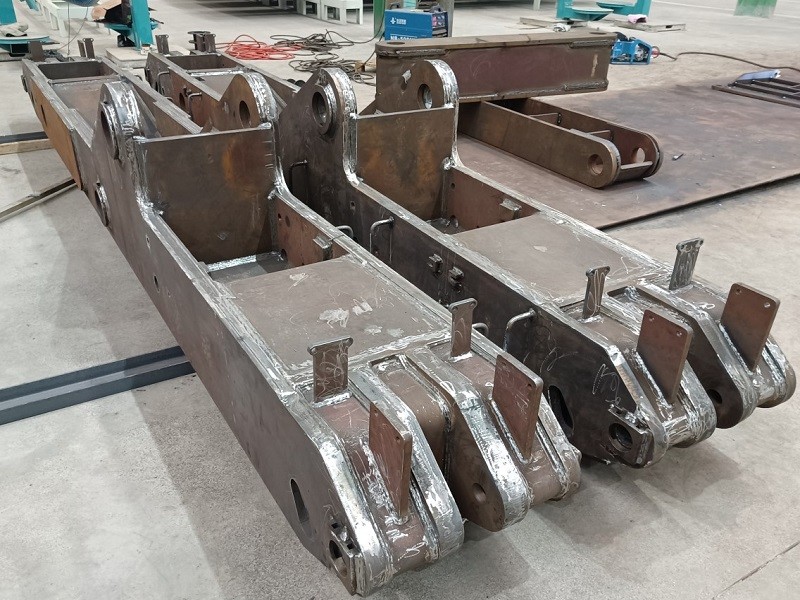

Mine Roadway Support Heavy Steel Fabrication Engineered For Underground Stability
Brand Name:SUNWAY
Minimum Order Quantity:20 T
Price:USD1000/T-USD1200/T
Payment Terms:L/C,T/T
Supply Ability:100000T/Year
Product Details
Highlight:
Q235B Heavy Steel Fabrication
,Q355B Heavy Steel Fabrication
,ASTM steel frame structure
Weather Resistance:
Yes
Cost:
Affordable
Customization Options:
Available
Raw Steel Material:
Q235B, Q355B, ASTM A36, ASTM572
Application:
Steel Structural Building
Color:
Optional
Production Capacity:
12500T Per Month
Standard:
AISC, ASTM, EN, BS, DIN, GB, JIS
Fire Resistance:
Yes
Design:
Customized
Durability:
High
Surface Treatment:
Painting Or Hot-dip Galvanized
Columns And Beam:
H Section Column&Beam
Size:
Customized
Customizable:
Yes
Product Description
Mine Roadway Support System: Engineered for Underground Stability
Safeguarding mining operations with robust steel arches designed for high-stress tunnels and dynamic geological conditions.
Core Specifications
- Material: High-yield steel (Q460C/EN S690QL) with yield strength ≥690 MPa
- Profile: Semi-circular or trapezoidal arches (4-8m span, 0.8-2.2m height)
- Load Capacity: Static 0.5 MPa / Dynamic 0.3 MPa (ISO 14688-2 compliant)
Critical Design Features
- Active Ground Control: Pre-tensioned cross-struts counteract rockbursts and convergence
- Modular Assembly: Bolt-connected segments enable rapid deployment in confined spaces
- Corrosion Defense: Hot-dip galvanizing (≥86μm) + coal tar epoxy coating for acidic environments
- Deformation Monitoring: RFID tags embedded for real-time stress monitoring via 5G mesh networks
Geotechnical Adaptability
- Coal seams with gas outburst risks (ATEX Zone 1 certified)
- Soft rock tunnels with >15% creep deformation
- Deep mines (>1000m) under high geothermal stress
Compliance & Certification
- MSHA 30 CFR Part 75 roof control standards
- ISO 14689-1 geotechnical investigation alignment
- EN 1090-2 execution class EXC4 for critical structures
Where geology challenges productivity, our steel arches deliver resilience.
| Product name | Mine Roadway Support System |
| Material | ASTM; EN; GB; |
| Surface | Painted; HDG |
OEM service available.
A dedicated team of fast response;
EN1090 & AISC & CWB & JIS Certificated Quality;
Full production line for customized products;
Close to Sea port, Convenient for visit and delivery;
150000M2 Manufacturing Area capable to take large volume
