‌Steel Conveyor Support Structure Heavy Duty Framing For Bulk Material Handling

Brand Name:SUNWAY
Minimum Order Quantity:20 T
Price:USD1000/T-USD1200/T
Payment Terms:L/C,T/T
Supply Ability:100000T/Year
Product Details
Highlight:

Steel Conveyor Support Structure

,

Framing Conveyor Support Structure

,

Bulk Material Handling Conveyor Support Structure
Weather Resistance: Yes
Cost: Affordable
Customization Options: Available
Raw Steel Material: Q235B, Q355B, ASTM A36, ASTM572
Application: Steel Structural Building
Color: Optional
Production Capacity: 12500T Per Month
Standard: AISC, ASTM, EN, BS, DIN, GB, JIS
Fire Resistance: Yes
Design: Customized
Durability: High
Surface Treatment: Painting Or Hot-dip Galvanized
Columns And Beam: H Section Column&Beam
Size: Customized
Customizable: Yes
Product Description

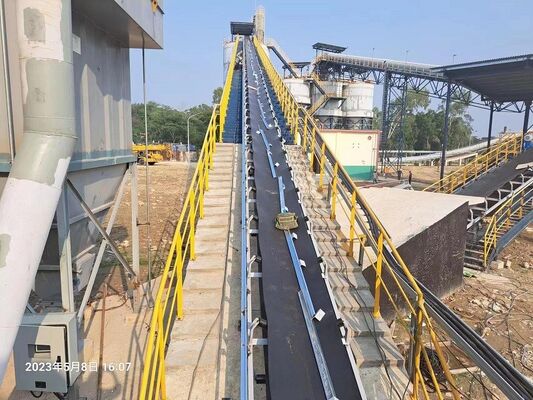

‌Steel Conveyor Support Structure: Heavy-Duty Framing for Bulk Material Handling

‌Steel Conveyor Support Structure Heavy Duty Framing For Bulk Material Handling‌

Engineered to sustain continuous operation under extreme loads, our galvanized steel supports ensure precision alignment for belt conveyors in quarries, mines, and processing plants.

‌Core Specifications‌

  • ‌Material‌: Hot-dip galvanized steel (Q355B/S355JR) with yield strength ≥355 MPa
  • ‌Span Configuration‌: 5m-30m standard spans, adjustable for ground settlement ±15°
  • ‌Load Capacity‌:
    • Vertical: ≤50 kN/m (CEMA C5 standard)
    • Lateral: Seismic Zone 4 compliant (IBC 2018)
  • ‌Corrosion Protection‌: G90 galvanizing (610g/㎡) + optional epoxy topcoat for coastal/chemical environments

‌Critical Design Advantages‌

  • ‌Dynamic Stability‌: Diagonal cross-bracing with energy-absorbing dampers reduces belt oscillation
  • ‌Modular Assembly‌: Bolt-on connection system enables 70% faster installation vs. welded frames
  • ‌Terrain Adaptability‌: Hydraulic height adjusters (±300mm) for uneven ground or inclined conveyors (0°-25°)
  • ‌Maintenance Optimization‌: Replaceable wear liners at impact zones (ceramic/AR400 steel options)

‌Smart Monitoring Integration‌

  • Vibration sensors pre-installed at bearing points
  • RFID tags for structural health tracking (ISO 17357-2)
  • IoT-ready brackets for strain gauge retrofitting

‌Typical Applications‌

  • Overland coal/iron ore conveyors (≤5000TPH)
  • High-altitude stacking systems (-40°C to +55°C operation)
  • Ship loading/unloading trestles with salt spray resistance



‌Steel Conveyor Support Structure Heavy Duty Framing For Bulk Material Handling

Product name    ‌Steel Conveyor Support Structure
Material     ASTM; EN; GB;
Surface     Painted; HDG



‌Steel Conveyor Support Structure Heavy Duty Framing For Bulk Material Handling



‌Steel Conveyor Support Structure Heavy Duty Framing For Bulk Material Handling

OEM service available.

A dedicated team of fast response;

EN1090 & AISC & CWB & JIS Certificated Quality;

Full production line for customized products;

Close to Sea port, Convenient for visit and delivery;

150000M2 Manufacturing Area capable to take large volume



‌Steel Conveyor Support Structure Heavy Duty Framing For Bulk Material Handling

‌Steel Conveyor Support Structure Heavy Duty Framing For Bulk Material Handling

‌Steel Conveyor Support Structure Heavy Duty Framing For Bulk Material Handling
